7 Pin NEMA Base – TE Connectivity

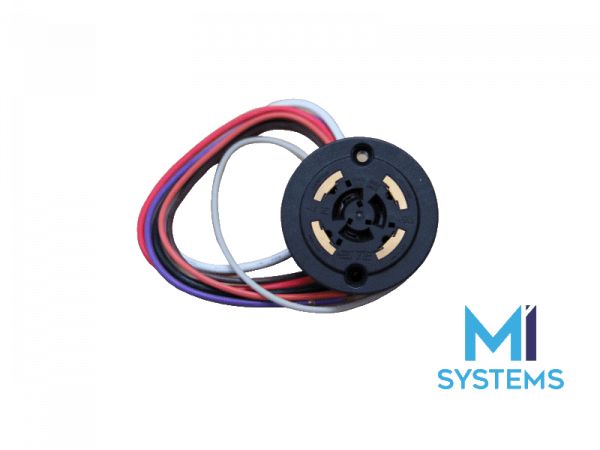

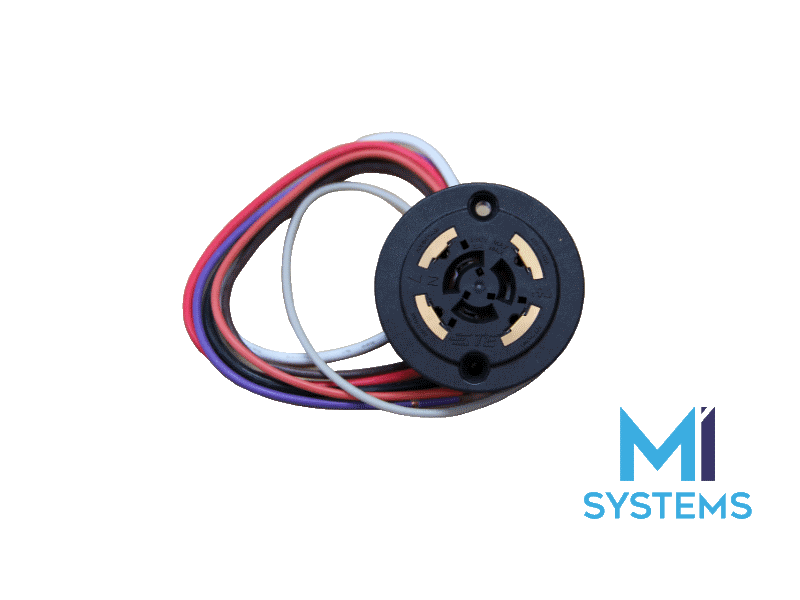

TE Connectivity ANSI C136.41 Dimming Receptacles and spring leaf contact provide an electrical and mechanical interconnection between a photo control cell and luminaire. These ANSI C136.41 compliant dimming receptacles deliver increased energy efficiency while expanding the dimming capabilities. The dimming receptacles incorporate two or four dimming contacts to support either 0-10 VDC dimming methods or Digital Addressable Lighting Interface (DALI), while providing a reliable power interconnect with three robust twist lock contacts.
The devices are available with 105ºC and 150ºC degrees rated wire insulation for various temperature graded luminaires. Pre-configured wire leads enable ease of integration into new or existing lighting fixtures. The design makes these connectors ideal for outdoor commercial, utility lighting and street lighting.
⋅ Conforms to dimensional requirements of ANSI C136.41-2013
⋅ Offered in a 5 and 7 position version
⋅ 5 position: 3 power contacts + 2 dimming/signal contacts
⋅ 7 position: 3 power contacts + 4 dimming/signal contacts
⋅ Power contacts terminated to 14AWG stranded wire per UL1015 or UL3321
⋅ Signal Contacts terminated to 18AWG stranded wire per UL1015 or UL3321
Current rating: 15A max. (power contact) 0.10A max. (signal contact)
Voltage rating: 480VAC/DC 10VAC/DC
CUR recognized to UL 773
