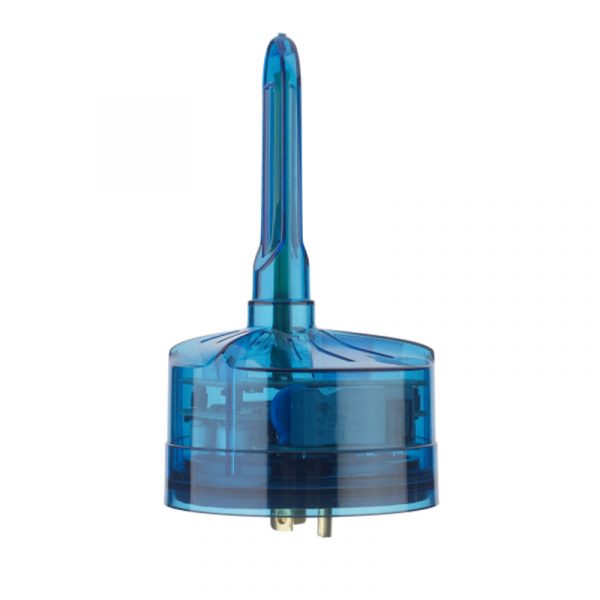

NEMA Node

Product Description

The Nema Node is a retrofit solution replacing the existing Nema photocell. Nema Nodes offer a quick and convenient replacement for any street light that currently uses a Nema Photocell. Each Nema Node provides monitoring and switching of conventional and ECG gear.

Specifications

  Luminaire Fitting: Standard NEMA Fitting (optionally with 20mm conduit mount).
  Onsite Protection: Polycarbonate.
  IP rating: IP 65 correctly fitted.
  Enclosure material: Polycarbonate.
  Operating temperature range: -30°C to +75°C.
  Power Supply requirements: 198 – 264 Vac 50Hz.
  Receiver classification: Class 2.
  Device classification: Class 2.
  Performance Compliance: EN300 220 / REC 70-03 Annex1 (g1).
  Manufactured in the UK.
  Available as 20mm conduit mounting version.
