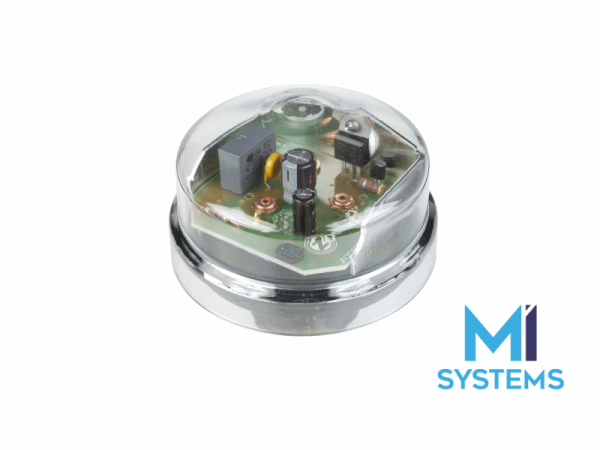

Zodion SS3 Photocell

One part NEMA photocell

Product Description

The SS3 photocell has robust and proven circuitry (similar to that of the SS6). Switching delay to avoid irregular illumination and de-illumination. This consistent circuitry ensures long, accurate and trouble free life, whilst incorporating a filter system that results in reduced manufacturing costs, and therefore the SS3 photocell has the corresponding price benefit.

MI System provides all NEMA based SS3 units with the ZBASE, a modified gasket specially designed for photocells where the intended use is in conjunction with 3pin or 5/7 pin NEMA sockets to ANSI C136.41. This gasket uses a wider diameter sealing gasket with Mylar insulation barrier to ensure optimised mechanical connection and performance. For more information on the ZBASE click here.



Benefits

Long Life: Superior quality components used throughout and zero cross switching reduces stresses

Energy Saving: 0.25W power consumption.

Reduced Burning Hours: Use of Cableform’s unique ‘DyeMatch’ optical filter system

Peace of Mind: Proven reliability and performance



Download the SS3 specification sheet here

Product Codes: F6022 / F6054 / SP01605
