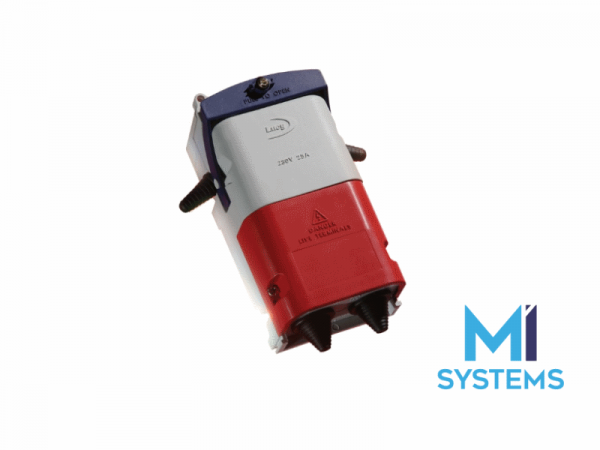

Lucy Titan 2. HRC fuse and disconnector unit

Titan2 – single and double pole cut out

Product Description

The Lucy Titan2 Cut out is supplied as standard with many class-leading features that make the installer’s task considerably easier. High-quality engineering thermoplastics make the Titan2 range the ideal choice to withstand heavy use in demanding locations. The cut outs have been modified to include a 3TT bar and MEN link.

This is adjusted specifically for the New Zealand market ensuring compliance with ASNZS3000.

Specifications

  Moulded in high-performance thermoplastics.
  IP43 rating.
  Single or Double pole.
  Single or twin fuse.
  Detachable terminal block in extension trough facilitates termination of heavy duty cables.
  Electroplated brass terminal blocks accept conductors up to 25mm.
  Terminal blocks for 1 to 3 conductors.
  Stud and lug connections.
  Serrated bores in terminals to ensure good contact with all conductor types.
  Red terminal block cover for safety.
  Padlock and sealing wire facilities provided.



DOWNLOAD THE TITAN2 SPECIFICATION SHEET

Product Variants

THM0040488 Titan 2 - 2 x 6 Amp fuse with variation
THM0040480 Titan 2 - 1 x 6 Amp fuse with variation
THM0090574 Titan 2 - 1 x 6 Amp fuse with 2 x 3TT Bar
THM0090577 Titan 2 - 2 x 6 Amp fuse with 2 x 3TT Bar
