Extension Trough NED, 3 phase

Product Description

The extension housings (troughs) featured are specifically designed to enhance the versatility of the Lucy Zodion Titan2, providing solutions for even the most onerous cabling situations. Manufactured from the same high performance thermoplastics as the fuse unit, the extension troughs can be fitted with a variety of terminations including insulated terminal blocks or stud terminals.

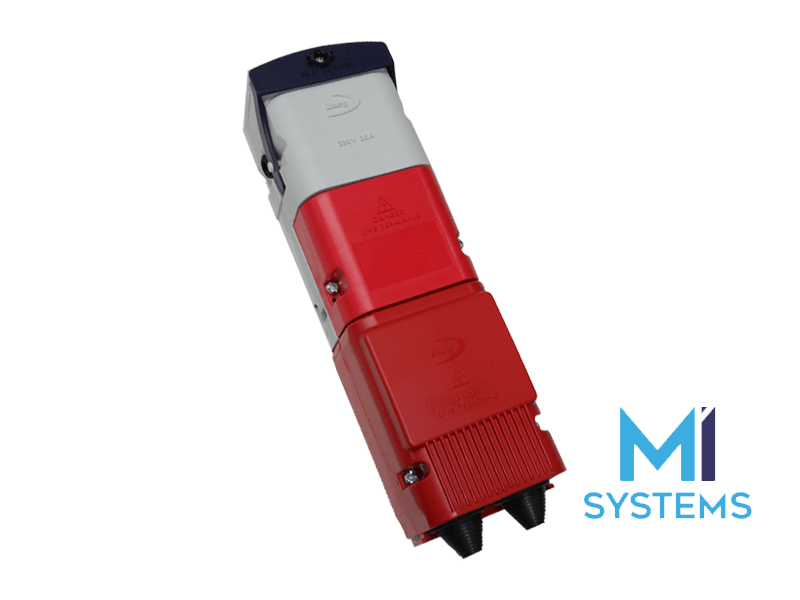

The Lucy Titan2 Cut out is supplied as standard with many class-leading features that make the installer’s task considerably easier. High-quality engineering thermoplastics make the Titan2 range the ideal choice to withstand heavy use in demanding locations. The cut outs have been modified to include a 3TT bar and MEN link with the addition of the NED Trough, 2 entry/NEC Extension Trough, 3 entry.

This is adjusted specifically for the New Zealand market ensuring compliance with ASNZS3000.



Specifications

  Moulded in high-performance thermoplastics.
  IP43 rating.
  Single or Double pole.
  Single or twin fuse.
  Detachable terminal block in extension trough facilitates termination of heavy duty cables.
  Electroplated brass terminal blocks accept conductors up to 25mm.
  Terminal blocks for 1 to 3 conductors.
  Stud and lug connections.
  Serrated bores in terminals to ensure good contact with all conductor types.
  Red terminal block cover for safety.
  Padlock and sealing wire facilities provided.

3phase

The troughs featured are specifically designed to enhance the versatility of the Titan2 range, providing solutions for even the most onerous cabling situations. Manufactured from the same high performance thermoplastics as the fuse unit, the extension troughs can be fitted with a variety of terminations including insulated terminal blocks or stud terminals.

Download the Troughs Specification Sheet
