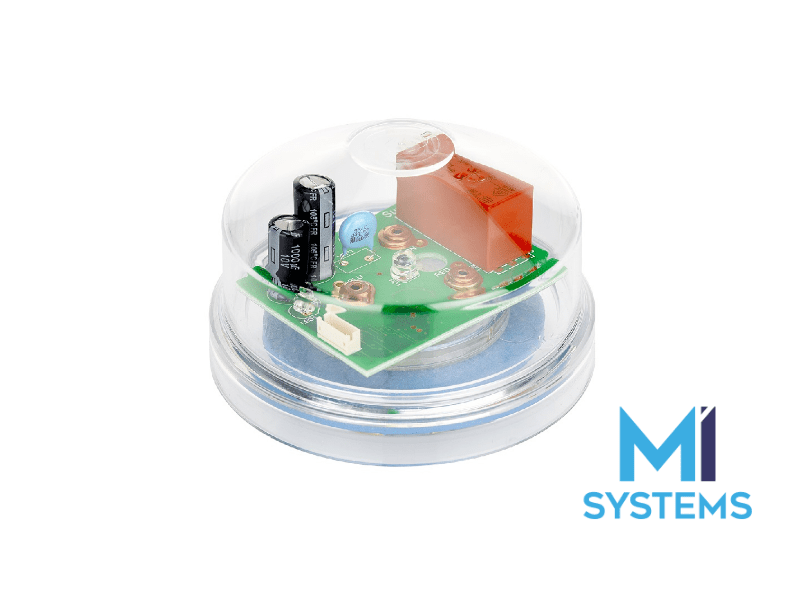

Zodion ZCELL LED Part Night

Product Description


The ZCELL LED Part Night NEMA photocell can be pre-programmed to a customer’s specification and features a DLS option for accurate switching in both BMT and BST.Long life automotive grade components, offering 15 years continuous operation.


  Standard NEMA fitting.
  Low luminance level switching to reflect zero warm up time of LEDs.
  Unity switching – 20:20 Lux as standard (other options available on request).
  LED status indicator.
  Filtered photodiode for CIE photopic performance.
  Microprocessor controlled.
  Superior high grade components.
  Through hole plated PCB for increased mechanical durability.
  Intrinsically surge resistant circuit.
  Near unity power factor circuit design.
  Embossed terminal markings.
  Long life design.
  High impact, UV stable polycarbonate casing.
  Operational voltage range – 198V ~ 264V.
  Operational frequency range – 50Hz.
  Power factor – >0.9.
  Power consumption – <100mW.
  Operational temperature range – 20°C to 80°C.
  Surge protection – 2kV.
  Switching mechanism – electromagnetic relay.
  Switching level – available in 20, 35, 55, 70 Lux versions.
  Switching differential – available in 1:1 or 1:0.5 ratios.
  Switching delay – 10 seconds (approximately).
  Maximum load LED / Discharge – 400W.
  Sensor type – filtered photodiode.
  Sensor drift – negligible.
  IP classification – IP67.
  Compliance Standards (applicable clauses) – EN61000, EN55015, EN61547, EN61347, EN60950


Download the ZCell Night LED Photocell Specification Sheet
